MoECacheModel.hpp File Reference

Factorized Mixture of Experts (MoE) neural network architecture and inference components. More...

#include <algorithm>
#include <array>
#include <atomic>
#include <cassert>
#include <chrono>
#include <cmath>
#include <condition_variable>
#include <cstdint>
#include <cstdlib>
#include <cstring>
#include <functional>
#include <iomanip>
#include <iostream>
#include <limits>
#include <memory>
#include <mutex>
#include <queue>
#include <random>
#include <string>
#include <thread>
#include <type_traits>
#include <utility>
#include <vector>
#include <chess.hpp>
#include "FactorizedFeatureExtractor.hpp"
#include "PersistentThreadPool.hpp"

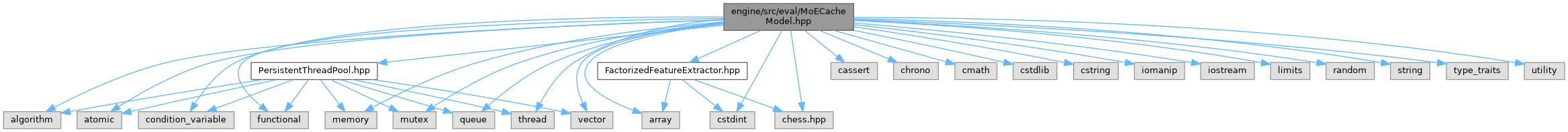

Include dependency graph for MoECacheModel.hpp:

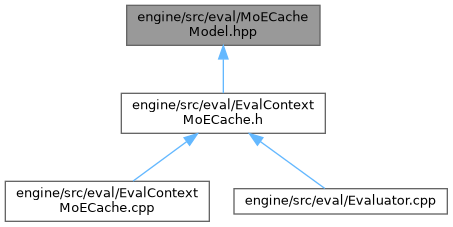

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	BenchConfig
struct	BenchResult
struct	BranchLayer
struct	Branch
struct	Expert
struct	SharedMoEWeights
	Contains the globally shared, read-only weights for the Factorized MoE network. More...
struct	MoEDoubleAccumulator
	Thread-local state for incremental, lightning-fast neural network inference. More...
struct	MoEDoubleAccumulator::PhaseProfile

Macros
#define	FORCE_VECTORIZE
#define	HOT_RESTRICT   __restrict__

Typedefs
using	Clock = std::chrono::high_resolution_clock

Enumerations
enum class	ExpertPoolMode { Flat , Gap , Pool2x2Avg , Pool2x2Max }
	Defines how spatial features are pooled before entering the fully-connected expert networks. More...

Functions
static double	us (Clock::time_point a, Clock::time_point b)
static bool	is_slider_branch_rich (int branch_idx)
	Determines if a specific branch corresponds to a slider piece type (Bishop, Rook, Queen).
static int	active_channels_for_branch (int branch_idx)
	Returns the number of active input feature channels for a given branch.
static bool	is_slider_dirty (const Board &board, const Board &old_board, Color side, PieceType pt)
	Checks if a slider piece type (Bishop, Rook, Queen) has become "dirty".
static void	mark_head (std::array< uint8_t, 12 > &m, Color s, PieceType pt)
	Marks a specific piece type for a specific color as "dirty" in the dirty mask.
static std::array< uint8_t, 12 >	build_dirty_mask (const Board &old_board, const Board &new_board, const Move &mv)
	Analyzes a chess move to determine exactly which of the 12 spatial branches need recomputing.
static bool	branch_planes_changed (const FactorizedInput &a, const FactorizedInput &b, int branch_idx)
	Performs a fast byte-level comparison to see if two spatial branch inputs are identical.
static void	simd_add_scaled (float *HOT_RESTRICT dst, const float *HOT_RESTRICT src, float scale, int n)
	SIMD-optimized fused multiply-add (FMA) for adding a scaled vector to a destination vector. dst[i] += src[i] * scale.
template<typename T>
static T *	assume_aligned_32 (T *ptr)
	Hints the compiler that a pointer is aligned to a 32-byte boundary (for AVX operations).
template<typename T>
static const T *	assume_aligned_32 (const T *ptr)
static void	conv3x3_accumulate_plane (float *HOT_RESTRICT out_plane, const float *HOT_RESTRICT in_plane, const float *HOT_RESTRICT wk)
	Computes a full 3x3 2D convolution for a single input channel and accumulates it into out_plane.
static void	conv3x3_single_out_relu (const float *HOT_RESTRICT in, const float *HOT_RESTRICT w, float b, float *HOT_RESTRICT out, int ic)
	Computes a 3x3 convolution across multiple input channels (ic) to produce a single output channel, followed by ReLU.
static void	conv3x3_relu (const float *HOT_RESTRICT in, const float *HOT_RESTRICT w, const float *HOT_RESTRICT b, float *HOT_RESTRICT out, int ic, int oc)
	Computes a full 3x3 convolution from ic input channels to oc output channels, followed by ReLU.
static void	conv3x3_relu_bd16_dispatch (const float *HOT_RESTRICT in, const float *HOT_RESTRICT w, const float *HOT_RESTRICT b, float *HOT_RESTRICT out, int ic)
static void	depthwise_conv3x3_relu (const float *HOT_RESTRICT in, const float *HOT_RESTRICT w, const float *HOT_RESTRICT b, float *HOT_RESTRICT out, int channels)
	Computes a depthwise 3x3 convolution followed by a ReLU activation.
static void	conv1x1_relu (const float *HOT_RESTRICT in, const float *HOT_RESTRICT w, const float *HOT_RESTRICT b, float *HOT_RESTRICT out, int ic, int oc)
	Computes a 1x1 convolution (pointwise convolution) across the spatial grid, followed by ReLU.
static const char *	expert_pool_mode_name (ExpertPoolMode mode)
static int	pool2x2_region_from_sq (int sq)
static void	pool2x2_region_base (int region, int &r0, int &c0)

Variables
static constexpr int	kDefaultBranchDim = 16
static constexpr int	kDefaultMixerOut = 64
static constexpr int	kDefaultBypass = 12
static constexpr int	kDefaultGlobals = 21
static constexpr int	kDefaultExperts = 4
static constexpr int	kDefaultExpertBottleneck = 32
static constexpr int	kDefaultExpertHidden = 128
static constexpr int	NET_BRANCH_DIM = 16
static constexpr int	NET_MIXER_OUT = 64
static constexpr int	NET_BYPASS = 12
static constexpr int	NET_GLOBALS = 21
static constexpr int	NET_EXPERTS = 4
static constexpr int	NET_EXPERT_BOTTLENECK = 32
static constexpr int	NET_EXPERT_HIDDEN = 128
static constexpr int	kInputBypassPlanes = 12
static constexpr int	kInputGlobals = 32
static constexpr int	kMaxBranchDim = NET_BRANCH_DIM
static constexpr int	kMaxMixerOut = NET_MIXER_OUT
static constexpr int	kMaxBypass = NET_BYPASS
static constexpr int	kMaxGlobals = NET_GLOBALS
static constexpr int	kMaxExperts = NET_EXPERTS
static constexpr int	kMaxExpertBottleneck = NET_EXPERT_BOTTLENECK
static constexpr int	kMaxExpertHidden = NET_EXPERT_HIDDEN
static constexpr int	kMixerOcTile = 8
static constexpr int	kPool2x2Regions = 16

Detailed Description

Factorized Mixture of Experts (MoE) neural network architecture and inference components.

This file implements the core inference structures for the natively-compiled Factorized MoE network used for position evaluation. The architecture processes a custom 12-branch spatial feature set extracted via FactorizedFeatureExtractor, applies a mixer layer, routes the evaluation to specialized expert networks, and computes the final Win/Draw/Loss probabilities.

Architecture Overview

• Branches: 12 independent 3x3 convolutional feature branches (e.g., White Pawns, Black Knights, etc.).
• Mixer: A fully-connected layer that combines the outputs of all 12 branches and global features.
• Router: A shallow network that selects the most appropriate "Expert" sub-networks for the given position (e.g., Endgame vs Opening).
• Experts: Specialized fully-connected networks (Bottleneck -> Hidden -> WDL Output).

Double Accumulator (Incremental Inference)

For maximum performance, this file uses a double accumulator pattern (MoEDoubleAccumulator):

1. Base Accumulator: Stores the state of the network for the current position.
2. Dirty Accumulator: When a move is made, instead of running the entire network, we only compute the delta (difference) for the specific pieces that moved or were captured (dirty_branches). This reduces the evaluation time from ~20 microseconds (full forward pass) to <1 microsecond (incremental update).

Note

This file contains both engine evaluation structures (MoEDoubleAccumulator) and full-batch multi-threaded evaluation structures (SharedMoEWeights::forward) which are strictly retained for the standalone benchmark tools in src/tools/.

Macro Definition Documentation

FORCE_VECTORIZE

#define FORCE_VECTORIZE

HOT_RESTRICT

#define HOT_RESTRICT   __restrict__

Typedef Documentation

Clock

using Clock = std::chrono::high_resolution_clock

Enumeration Type Documentation

ExpertPoolMode

enum class ExpertPoolMode

strong

Defines how spatial features are pooled before entering the fully-connected expert networks.

Enumerator
Flat
Gap
Pool2x2Avg
Pool2x2Max

Function Documentation

active_channels_for_branch()

int active_channels_for_branch ( int branch_idx )

inlinestatic

Returns the number of active input feature channels for a given branch.

Parameters

branch_idx

The index of the branch.

Returns

5 channels for sliders (includes X-ray features), 4 channels for non-sliders.

Here is the call graph for this function:

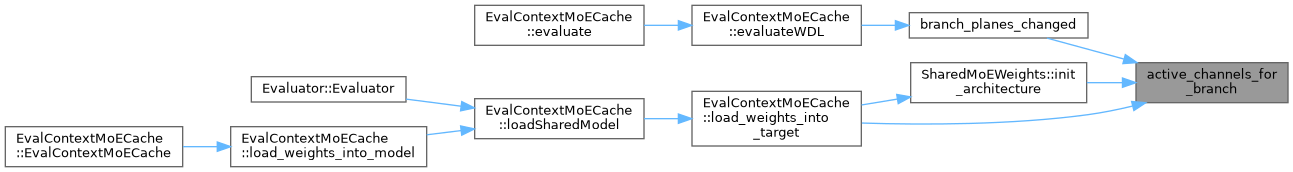

Here is the caller graph for this function:

assume_aligned_32() [1/2]

template<typename T>

const T * assume_aligned_32 ( const T * ptr )

inlinestatic

assume_aligned_32() [2/2]

template<typename T>

T * assume_aligned_32 ( T * ptr )

inlinestatic

Hints the compiler that a pointer is aligned to a 32-byte boundary (for AVX operations).

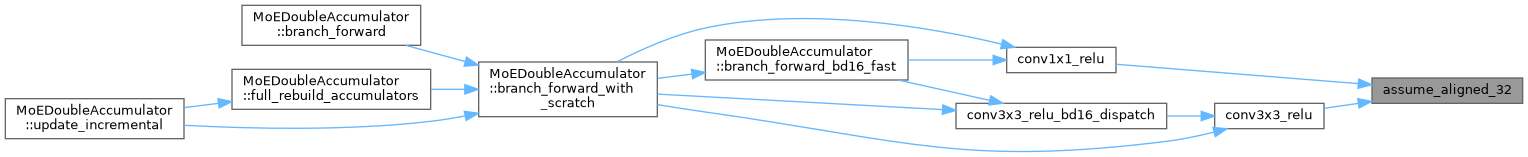

Here is the caller graph for this function:

branch_planes_changed()

bool branch_planes_changed ( const FactorizedInput & a, const FactorizedInput & b, int branch_idx )

inlinestatic

Performs a fast byte-level comparison to see if two spatial branch inputs are identical.

Parameters

a	The old factorized input.
b	The new factorized input.
branch_idx	The index of the branch to check.

Returns

True if the inputs differ, false if they are identical.

Here is the call graph for this function:

Here is the caller graph for this function:

build_dirty_mask()

std::array< uint8_t, 12 > build_dirty_mask ( const Board & old_board, const Board & new_board, const Move & mv )

static

Analyzes a chess move to determine exactly which of the 12 spatial branches need recomputing.

This is the core of the incremental update logic. It prevents full network re-evaluations by figuring out which specific piece types (e.g., White Pawns, Black Knights) had their board representation changed by the move, including complex cases like discoveries, castling, and en passant.

Parameters

old_board	The board state before the move.
new_board	The board state after the move.
mv	The move that was just played.

Returns

An array of 12 bytes acting as boolean flags (1 = dirty, 0 = clean) for each branch.

Here is the call graph for this function:

conv1x1_relu()

void conv1x1_relu ( const float *HOT_RESTRICT in, const float *HOT_RESTRICT w, const float *HOT_RESTRICT b, float *HOT_RESTRICT out, int ic, int oc )

static

Computes a 1x1 convolution (pointwise convolution) across the spatial grid, followed by ReLU.

This operation mixes features across channels for every spatial square independently.

Parameters

in	Flattened input tensor [ic][64].
w	Flattened weights [oc][ic].
b	Flattened biases [oc].
out	Flattened output tensor [oc][64].
ic	Number of input channels.
oc	Number of output channels.

Here is the call graph for this function:

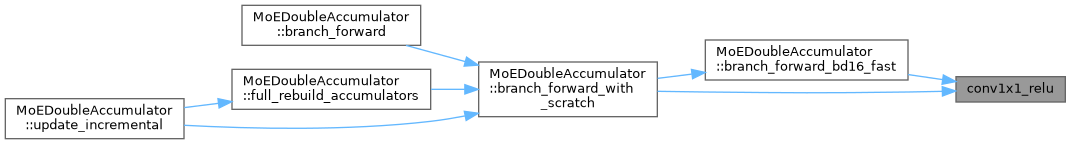

Here is the caller graph for this function:

conv3x3_accumulate_plane()

void conv3x3_accumulate_plane ( float *HOT_RESTRICT out_plane, const float *HOT_RESTRICT in_plane, const float *HOT_RESTRICT wk )

inlinestatic

Computes a full 3x3 2D convolution for a single input channel and accumulates it into out_plane.

This avoids boundary checks by breaking the 8x8 chessboard into regions (Center, North/South edges, Corners).

Parameters

out_plane	The destination 64-element array.
in_plane	The source 64-element array representing the spatial features.
wk	A 9-element array representing the 3x3 convolution weights.

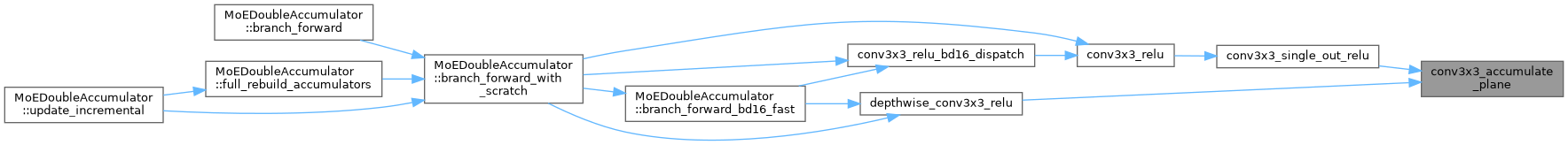

Here is the caller graph for this function:

conv3x3_relu()

void conv3x3_relu ( const float *HOT_RESTRICT in, const float *HOT_RESTRICT w, const float *HOT_RESTRICT b, float *HOT_RESTRICT out, int ic, int oc )

static

Computes a full 3x3 convolution from ic input channels to oc output channels, followed by ReLU.

Parameters

in	Flattened input tensor [ic][64].
w	Flattened weights [oc][ic][9].
b	Flattened biases [oc].
out	Flattened output tensor [oc][64].
ic	Number of input channels.
oc	Number of output channels.

Here is the call graph for this function:

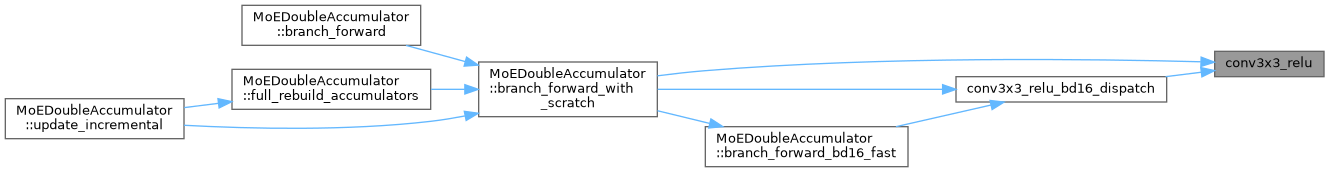

Here is the caller graph for this function:

conv3x3_relu_bd16_dispatch()

void conv3x3_relu_bd16_dispatch ( const float *HOT_RESTRICT in, const float *HOT_RESTRICT w, const float *HOT_RESTRICT b, float *HOT_RESTRICT out, int ic )

inlinestatic

Here is the call graph for this function:

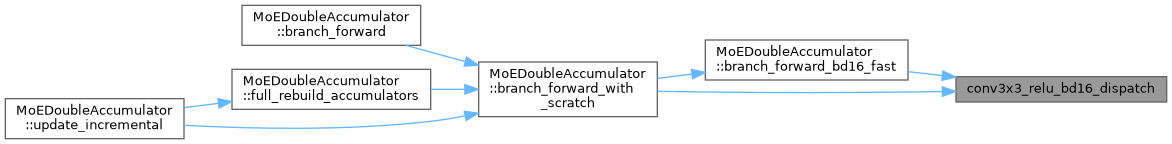

Here is the caller graph for this function:

conv3x3_single_out_relu()

void conv3x3_single_out_relu ( const float *HOT_RESTRICT in, const float *HOT_RESTRICT w, float b, float *HOT_RESTRICT out, int ic )

inlinestatic

Computes a 3x3 convolution across multiple input channels (ic) to produce a single output channel, followed by ReLU.

Parameters

in	The flattened input tensor [ic][64].
w	The flattened weights [ic][9].
b	The bias scalar.
out	The destination 64-element array for the output channel.
ic	Number of input channels.

Here is the call graph for this function:

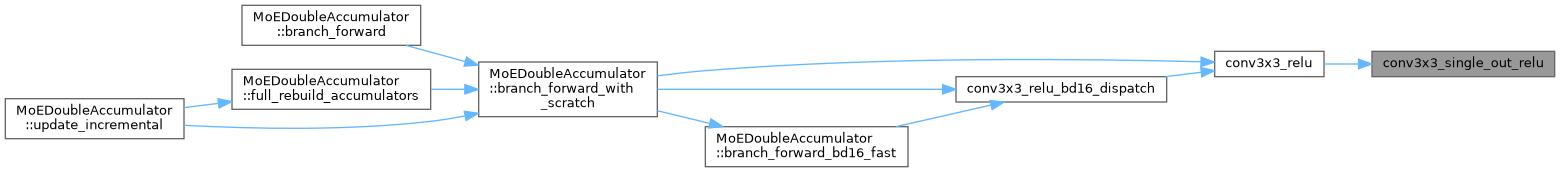

Here is the caller graph for this function:

depthwise_conv3x3_relu()

void depthwise_conv3x3_relu ( const float *HOT_RESTRICT in, const float *HOT_RESTRICT w, const float *HOT_RESTRICT b, float *HOT_RESTRICT out, int channels )

inlinestatic

Computes a depthwise 3x3 convolution followed by a ReLU activation.

In a depthwise convolution, each input channel is convolved with its own set of spatial weights, producing exactly one output channel per input channel, without mixing information across channels.

Parameters

in	Flattened input tensor [channels][64].
w	Flattened depthwise weights [channels][9].
b	Flattened biases [channels].
out	Flattened output tensor [channels][64].
channels	Number of channels (both input and output).

Here is the call graph for this function:

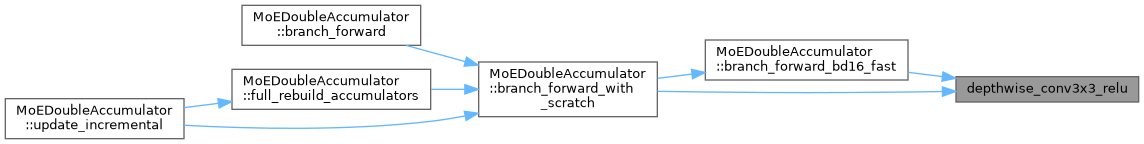

Here is the caller graph for this function:

expert_pool_mode_name()

const char * expert_pool_mode_name ( ExpertPoolMode mode )

inlinestatic

is_slider_branch_rich()

bool is_slider_branch_rich ( int branch_idx )

inlinestatic

Determines if a specific branch corresponds to a slider piece type (Bishop, Rook, Queen).

Parameters

branch_idx

The index of the branch (0-11).

Returns

True if the branch represents a slider piece, false otherwise.

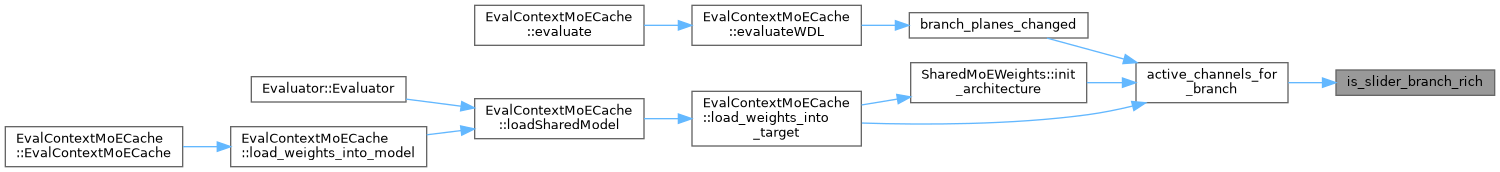

Here is the caller graph for this function:

is_slider_dirty()

bool is_slider_dirty ( const Board & board, const Board & old_board, Color side, PieceType pt )

static

Checks if a slider piece type (Bishop, Rook, Queen) has become "dirty".

A slider is dirty if any piece of that type moved, or if the board occupancy changed in a way that intersects with any of the slider's rays (blocking or unblocking its attack path).

Parameters

board	The new board state.
old_board	The previous board state.
side	The color of the slider pieces to check.
pt	The piece type (BISHOP, ROOK, or QUEEN).

Returns

True if the slider's features need to be recomputed, false otherwise.

Here is the caller graph for this function:

mark_head()

void mark_head ( std::array< uint8_t, 12 > & m, Color s, PieceType pt )

static

Marks a specific piece type for a specific color as "dirty" in the dirty mask.

Parameters

m	The 12-element boolean array mapping to the 12 spatial branches.
s	The color of the piece.
pt	The type of the piece.

Here is the caller graph for this function:

pool2x2_region_base()

void pool2x2_region_base ( int region, int & r0, int & c0 )

inlinestatic

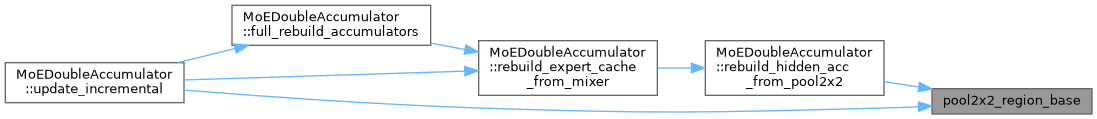

Here is the caller graph for this function:

pool2x2_region_from_sq()

int pool2x2_region_from_sq ( int sq )

inlinestatic

Here is the caller graph for this function:

simd_add_scaled()

void simd_add_scaled ( float *HOT_RESTRICT dst, const float *HOT_RESTRICT src, float scale, int n )

inlinestatic

SIMD-optimized fused multiply-add (FMA) for adding a scaled vector to a destination vector. dst[i] += src[i] * scale.

Parameters

dst	The accumulator array.
src	The source array to scale and add.
scale	The scalar multiplier.
n	Number of elements.

Here is the caller graph for this function:

us()

double us ( Clock::time_point a, Clock::time_point b )

inlinestatic

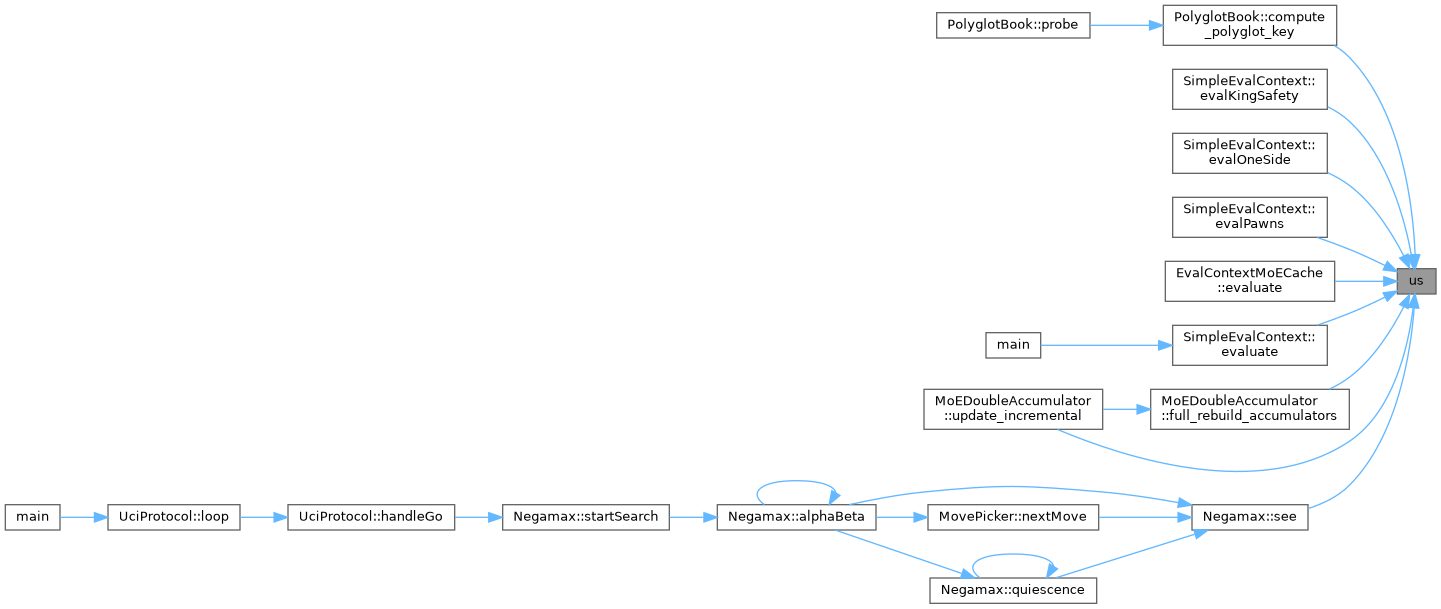

Here is the caller graph for this function:

Variable Documentation

kDefaultBranchDim

int kDefaultBranchDim = 16

staticconstexpr

kDefaultBypass

int kDefaultBypass = 12

staticconstexpr

kDefaultExpertBottleneck

int kDefaultExpertBottleneck = 32

staticconstexpr

kDefaultExpertHidden

int kDefaultExpertHidden = 128

staticconstexpr

kDefaultExperts

int kDefaultExperts = 4

staticconstexpr

kDefaultGlobals

int kDefaultGlobals = 21

staticconstexpr

kDefaultMixerOut

int kDefaultMixerOut = 64

staticconstexpr

kInputBypassPlanes

int kInputBypassPlanes = 12

staticconstexpr

kInputGlobals

int kInputGlobals = 32

staticconstexpr

kMaxBranchDim

int kMaxBranchDim = NET_BRANCH_DIM

staticconstexpr

kMaxBypass

int kMaxBypass = NET_BYPASS

staticconstexpr

kMaxExpertBottleneck

int kMaxExpertBottleneck = NET_EXPERT_BOTTLENECK

staticconstexpr

kMaxExpertHidden

int kMaxExpertHidden = NET_EXPERT_HIDDEN

staticconstexpr

kMaxExperts

int kMaxExperts = NET_EXPERTS

staticconstexpr

kMaxGlobals

int kMaxGlobals = NET_GLOBALS

staticconstexpr

kMaxMixerOut

int kMaxMixerOut = NET_MIXER_OUT

staticconstexpr

kMixerOcTile

int kMixerOcTile = 8

staticconstexpr

kPool2x2Regions

int kPool2x2Regions = 16

staticconstexpr

NET_BRANCH_DIM

int NET_BRANCH_DIM = 16

staticconstexpr

NET_BYPASS

int NET_BYPASS = 12

staticconstexpr

NET_EXPERT_BOTTLENECK

int NET_EXPERT_BOTTLENECK = 32

staticconstexpr

NET_EXPERT_HIDDEN

int NET_EXPERT_HIDDEN = 128

staticconstexpr

NET_EXPERTS

int NET_EXPERTS = 4

staticconstexpr

NET_GLOBALS

int NET_GLOBALS = 21

staticconstexpr

NET_MIXER_OUT

int NET_MIXER_OUT = 64

staticconstexpr
