ExpertRouter Class Reference

#include <ExpertRouter.hpp>

Classes
struct	ExpertWeights

Public Types
enum	Expert : int {   TACTICAL = 0 , STRATEGIC = 1 , MAJOR_END = 2 , MINOR_END = 3 ,   SURVIVOR = 4 , KILLER = 5 }

Static Public Member Functions
static void	compute_weights (const ChessInput &input, float eval_cp, ExpertWeights &out)
static void	compute_weights (const FactorizedInput &input, float eval_cp, ExpertWeights &out)
static void	get_top_k (const ExpertWeights &weights, int k, int *indices, float *probs)

Static Public Attributes
static constexpr int	NUM_EXPERTS = 6
static constexpr int	NUM_BASE = 4
static constexpr int	NUM_AUX = 2
static constexpr float	PHASE_ENDGAME_THRESHOLD = 0.65f
static constexpr float	CCT_TACTICAL_THRESHOLD = 14.0f
static constexpr float	CCT_STRATEGIC_THRESHOLD = 6.0f
static constexpr float	KILLER_CP_THRESHOLD
static constexpr float	SURVIVOR_CP_THRESHOLD
static constexpr float	AUX_RAMP_RANGE = 500.0f
static constexpr float	CCT_WEIGHT_CHECK = 10.0f
static constexpr float	CCT_WEIGHT_MAJOR_THREAT = 3.0f
static constexpr float	PIECE_VALUE_PAWN = 1.0f
static constexpr float	PIECE_VALUE_KNIGHT = 3.0f
static constexpr float	PIECE_VALUE_BISHOP = 3.0f
static constexpr float	PIECE_VALUE_ROOK = 5.0f
static constexpr float	PIECE_VALUE_QUEEN = 9.0f
static constexpr float	SCORE_MAX = 5.0f
static constexpr float	SCORE_MIN = 0.5f

Static Private Member Functions
static float	compute_phase (const ChessInput &input)
static float	compute_phase (const FactorizedInput &input)
static float	compute_cct (const ChessInput &input)
static bool	has_overlap_factorized (const FactorizedInput &input, int attacker_group_begin, int attacker_group_end, int target_presence_group)
static float	compute_cct (const FactorizedInput &input)
static bool	has_major_pieces (const ChessInput &input)
static float	compute_major_ratio (const ChessInput &input)
static float	compute_major_ratio (const FactorizedInput &input)
static float	compute_material_imbalance (const ChessInput &input)
static int	count_layer (const uint8_t layer[64])
static bool	has_overlap (const uint8_t a[64], const uint8_t b[64])
static float	piece_threat_value (const ChessInput &input, int threat_layer, int piece_layer, float piece_value)
static float	fast_exp (float x)
static float	sigmoid (float x)
static void	softmax (const float *scores, float *probs, int n)

Detailed Description

ExpertRouter - Computes expert weights for Residual MoE architecture

RESIDUAL ARCHITECTURE: Base Experts (0-3): Softmax group, sum to 1.0 - provides foundation Aux Experts (4-5): Independent gates (0-1) - provides residual bonus

6 Experts: BASE GROUP (Softmax): 0: TACTICAL - High CCT middlegame positions 1: STRATEGIC - Low CCT middlegame positions 2: MAJOR_END - Endgame with rooks/queens 3: MINOR_END - Endgame without major pieces AUX GROUP (Independent gates): 4: SURVIVOR - Resistance bonus when losing 5: KILLER - Progress bonus when winning

Member Enumeration Documentation

Expert

enum ExpertRouter::Expert : int

Enumerator
TACTICAL
STRATEGIC
MAJOR_END
MINOR_END
SURVIVOR
KILLER

Member Function Documentation

compute_cct() [1/2]

float ExpertRouter::compute_cct ( const ChessInput & input )

inlinestaticprivate

Compute CCT (Checks, Captures, Threats) score. Higher = more tactical.

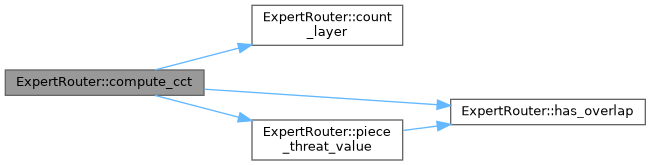

Here is the call graph for this function:

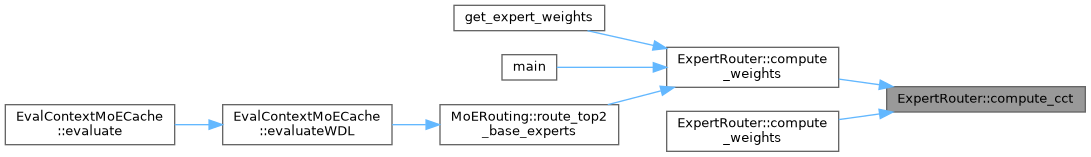

Here is the caller graph for this function:

compute_cct() [2/2]

float ExpertRouter::compute_cct ( const FactorizedInput & input )

inlinestaticprivate

Here is the call graph for this function:

compute_major_ratio() [1/2]

float ExpertRouter::compute_major_ratio ( const ChessInput & input )

inlinestaticprivate

Compute major piece ratio for endgame blending.

Returns 0.0 for pure minor endgame (no rooks/queens) Returns 1.0 for major-heavy endgame (lots of rooks/queens) Intermediate values for mixed endgames

Formula: major_material / (major_material + minor_material)

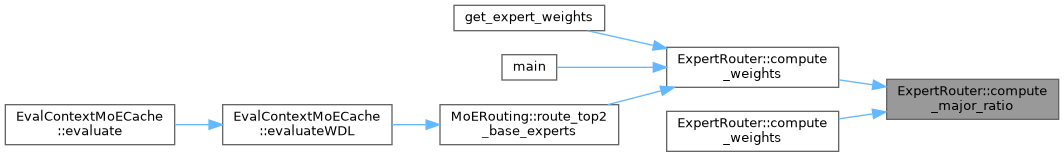

Here is the caller graph for this function:

compute_major_ratio() [2/2]

float ExpertRouter::compute_major_ratio ( const FactorizedInput & input )

inlinestaticprivate

compute_material_imbalance()

float ExpertRouter::compute_material_imbalance ( const ChessInput & input )

inlinestaticprivate

Compute material imbalance between sides (in pawn units)

compute_phase() [1/2]

float ExpertRouter::compute_phase ( const ChessInput & input )

inlinestaticprivate

Get pre-computed Game Phase from FeatureExtractor globals. 0.0 = Opening, 1.0 = Deep Endgame. (Computed in FeatureExtractor using Material * Mobility formula)

Here is the caller graph for this function:

compute_phase() [2/2]

float ExpertRouter::compute_phase ( const FactorizedInput & input )

inlinestaticprivate

compute_weights() [1/2]

void ExpertRouter::compute_weights ( const ChessInput & input, float eval_cp, ExpertWeights & out )

inlinestatic

Compute expert weights using Residual MoE architecture.

Output format (6 floats): [0-3]: Base experts (TACTICAL, STRATEGIC, MAJOR_END, MINOR_END) - softmax, sum=1 [4]: SURVIVOR gate - independent 0-1 (active when losing) [5]: KILLER gate - independent 0-1 (active when winning)

Parameters

input	The ChessInput features
eval_cp	Evaluation in centipawns (positive = side to move winning)
out	Output weights structure

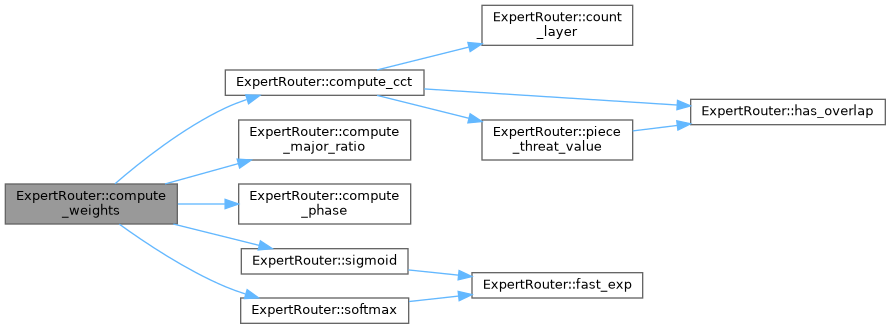

Here is the call graph for this function:

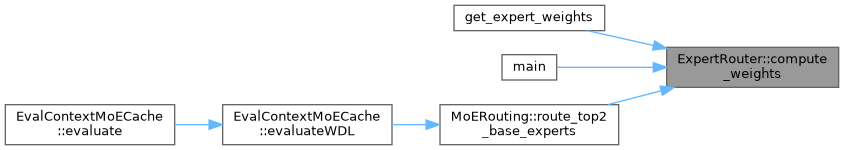

Here is the caller graph for this function:

compute_weights() [2/2]

void ExpertRouter::compute_weights ( const FactorizedInput & input, float eval_cp, ExpertWeights & out )

inlinestatic

Compute expert weights directly from factorized features. This avoids extracting ChessInput when factorized preprocessing is selected.

Here is the call graph for this function:

count_layer()

int ExpertRouter::count_layer ( const uint8_t layer[64] )

inlinestaticprivate

Count number of set squares in a layer (value > 0) Optimized using 64-bit strides.

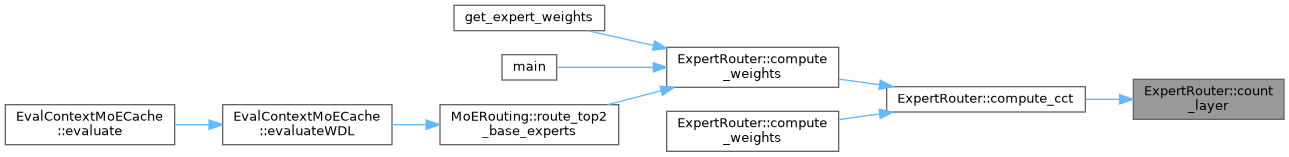

Here is the caller graph for this function:

fast_exp()

float ExpertRouter::fast_exp ( float x )

inlinestaticprivate

Fast approximation of exp(x). Range: Valid for inputs approx -87 to +87. Speed: ~10x faster than std::exp.

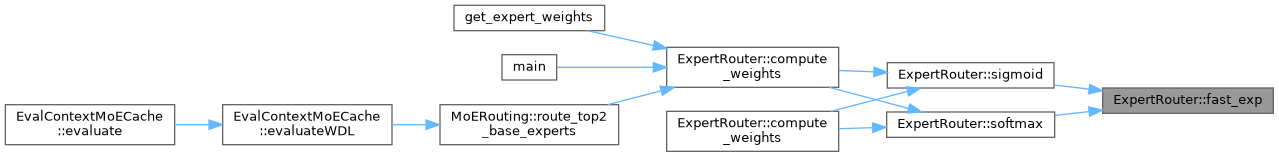

Here is the caller graph for this function:

get_top_k()

void ExpertRouter::get_top_k ( const ExpertWeights & weights, int k, int * indices, float * probs )

inlinestatic

Get top-k expert indices and their weights.

Parameters

weights	The computed expert weights
k	Number of experts to select (typically 2)
indices	Output array of expert indices (sorted by weight, descending)
probs	Output array of normalized probabilities for selected experts

has_major_pieces()

bool ExpertRouter::has_major_pieces ( const ChessInput & input )

inlinestaticprivate

Check if position has major pieces (rooks or queens)

has_overlap()

bool ExpertRouter::has_overlap ( const uint8_t a[64], const uint8_t b[64] )

inlinestaticprivate

Check if two layers have any overlap (both non-zero at same square) Optimized using 64-bit strides.

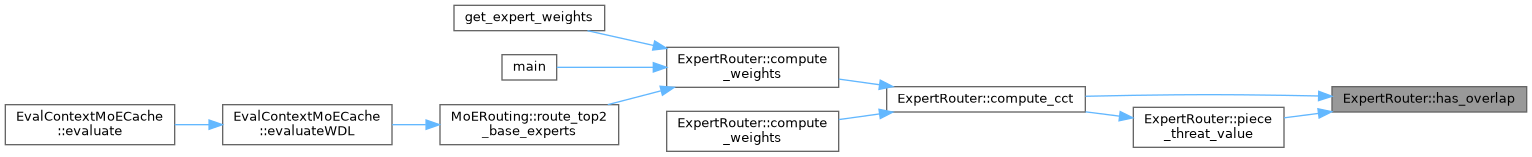

Here is the caller graph for this function:

has_overlap_factorized()

bool ExpertRouter::has_overlap_factorized ( const FactorizedInput & input, int attacker_group_begin, int attacker_group_end, int target_presence_group )

inlinestaticprivate

Here is the caller graph for this function:

piece_threat_value()

float ExpertRouter::piece_threat_value ( const ChessInput & input, int threat_layer, int piece_layer, float piece_value )

inlinestaticprivate

Get threat value for pieces of a specific type

Here is the call graph for this function:

Here is the caller graph for this function:

sigmoid()

float ExpertRouter::sigmoid ( float x )

inlinestaticprivate

Fast sigmoid approximation using fast_exp. sigmoid(x) = 1 / (1 + exp(-x)) Range: 0.0 to 1.0 (centered at 0.0)

Here is the call graph for this function:

Here is the caller graph for this function:

softmax()

void ExpertRouter::softmax ( const float * scores, float * probs, int n )

inlinestaticprivate

Optimized Softmax with Safety Fallback. If numerical instability occurs, defaults to TACTICAL/STRATEGIC split.

Here is the call graph for this function:

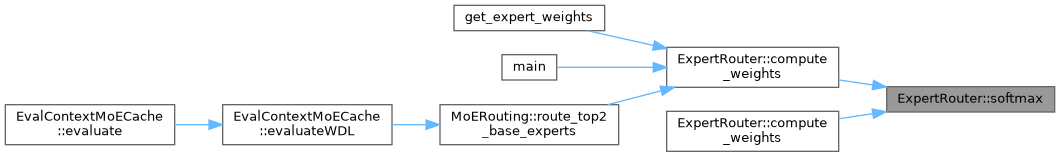

Here is the caller graph for this function:

Member Data Documentation

AUX_RAMP_RANGE

float ExpertRouter::AUX_RAMP_RANGE = 500.0f

staticconstexpr

CCT_STRATEGIC_THRESHOLD

float ExpertRouter::CCT_STRATEGIC_THRESHOLD = 6.0f

staticconstexpr

CCT_TACTICAL_THRESHOLD

float ExpertRouter::CCT_TACTICAL_THRESHOLD = 14.0f

staticconstexpr

CCT_WEIGHT_CHECK

float ExpertRouter::CCT_WEIGHT_CHECK = 10.0f

staticconstexpr

CCT_WEIGHT_MAJOR_THREAT

float ExpertRouter::CCT_WEIGHT_MAJOR_THREAT = 3.0f

staticconstexpr

KILLER_CP_THRESHOLD

float ExpertRouter::KILLER_CP_THRESHOLD

staticconstexpr

Initial value:

                                       =
150.0f

NUM_AUX

int ExpertRouter::NUM_AUX = 2

staticconstexpr

NUM_BASE

int ExpertRouter::NUM_BASE = 4

staticconstexpr

NUM_EXPERTS

int ExpertRouter::NUM_EXPERTS = 6

staticconstexpr

PHASE_ENDGAME_THRESHOLD

float ExpertRouter::PHASE_ENDGAME_THRESHOLD = 0.65f

staticconstexpr

PIECE_VALUE_BISHOP

float ExpertRouter::PIECE_VALUE_BISHOP = 3.0f

staticconstexpr

PIECE_VALUE_KNIGHT

float ExpertRouter::PIECE_VALUE_KNIGHT = 3.0f

staticconstexpr

PIECE_VALUE_PAWN

float ExpertRouter::PIECE_VALUE_PAWN = 1.0f

staticconstexpr

PIECE_VALUE_QUEEN

float ExpertRouter::PIECE_VALUE_QUEEN = 9.0f

staticconstexpr

PIECE_VALUE_ROOK

float ExpertRouter::PIECE_VALUE_ROOK = 5.0f

staticconstexpr

SCORE_MAX

float ExpertRouter::SCORE_MAX = 5.0f

staticconstexpr

SCORE_MIN

float ExpertRouter::SCORE_MIN = 0.5f

staticconstexpr

SURVIVOR_CP_THRESHOLD

float ExpertRouter::SURVIVOR_CP_THRESHOLD

staticconstexpr

Initial value:

                                         =
150.0f

---

The documentation for this class was generated from the following file:

• preprocessing/include/ExpertRouter.hpp
